SVC260Continuous-Motion VFFS Machine
Built for high-speed, consistent bagging of frozen foods, snacks, nuts, grains and dry pet food.
260mm
max. bag width400mm
max. bag length160bags/min*
max. speed0.04–0.10mm
film thickness
*Actual speed depends on product, fill weight, bag size and film.
Applications
Frozen foods, snacks, nuts, grains and dry pet food in pillow or gusset bags.
Frozen Foods / IQF
Shrimp, nuggets, meatballs and vegetables. We check product condition, weight and film in a test run.
Snacks & Confectionery
Chips, puffs and candy. Fragility and bag size decide the weigher and forming set.
Nuts & Grains
Nuts, cereals and grains. Target weight and bag format decide the weigher setup.
Dry Pet Food
Kibble and treats. Piece size, density and dust decide the weigher and film.
How Continuous Motion Works
The film runs without stopping while the sealing jaws move with it to seal and cut each bag.
- 01
Continuous Motion
Film and sealing jaws move together without stopping, for higher output.
- 02
Six-Axis Servo Control
Film transport, bag forming and sealing run on coordinated servo motion.
- 03
Film Feed & Registration
Color-mark sensing, film pulling and tension control for the selected film.
- 04
Operator Setup & Protection
Touchscreen setup, machine alarms and door protection.
Key Working Areas

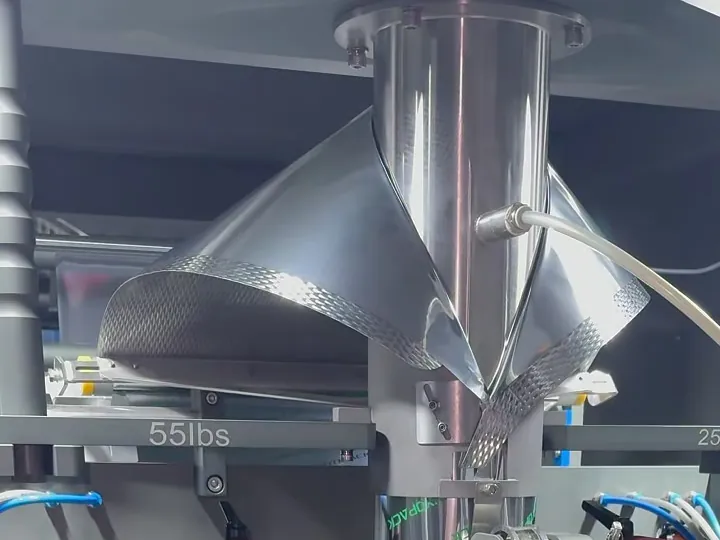

Forming Area
Forms flat film into a tube.

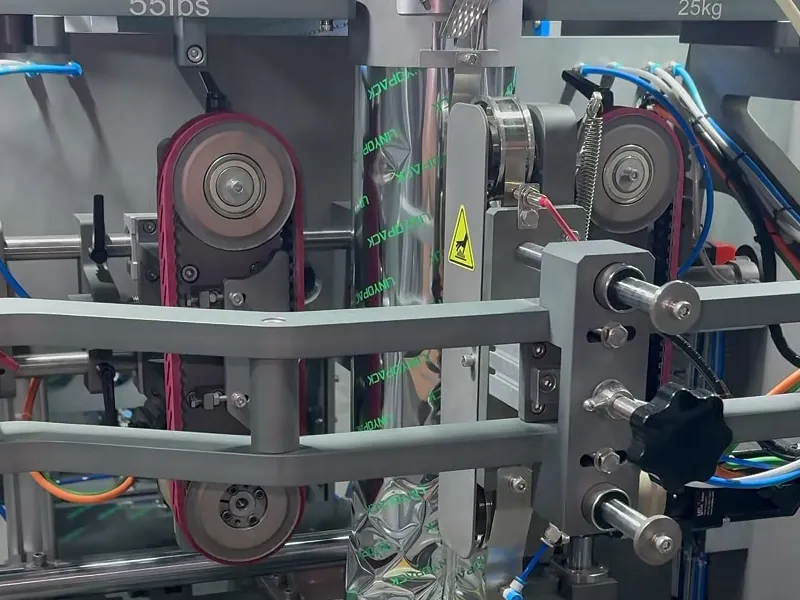

Film Pulling Area
Pulls film steadily down the forming tube.

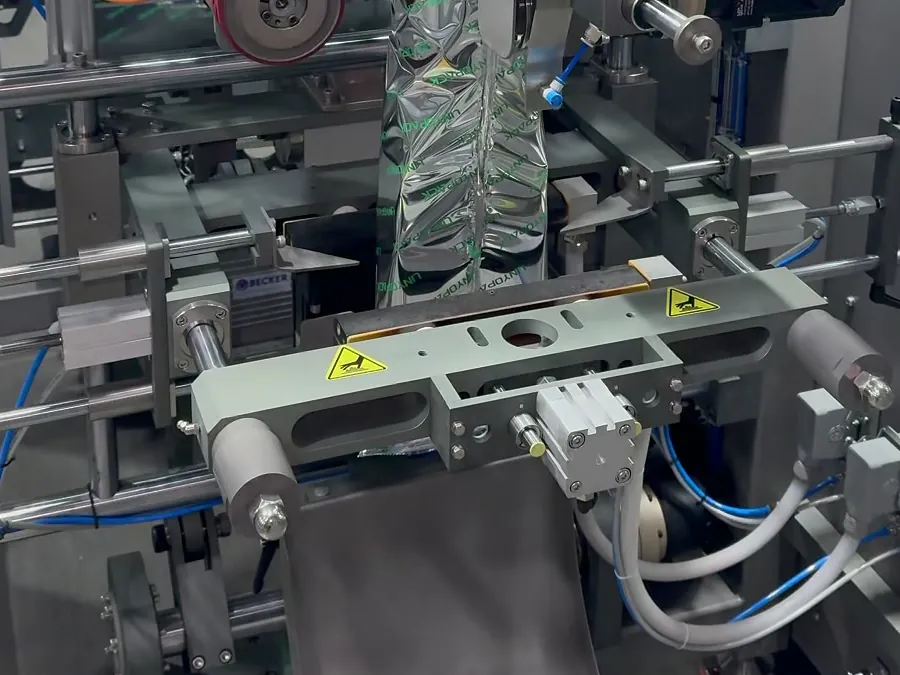

Sealing Area
Seals and cuts each bag.

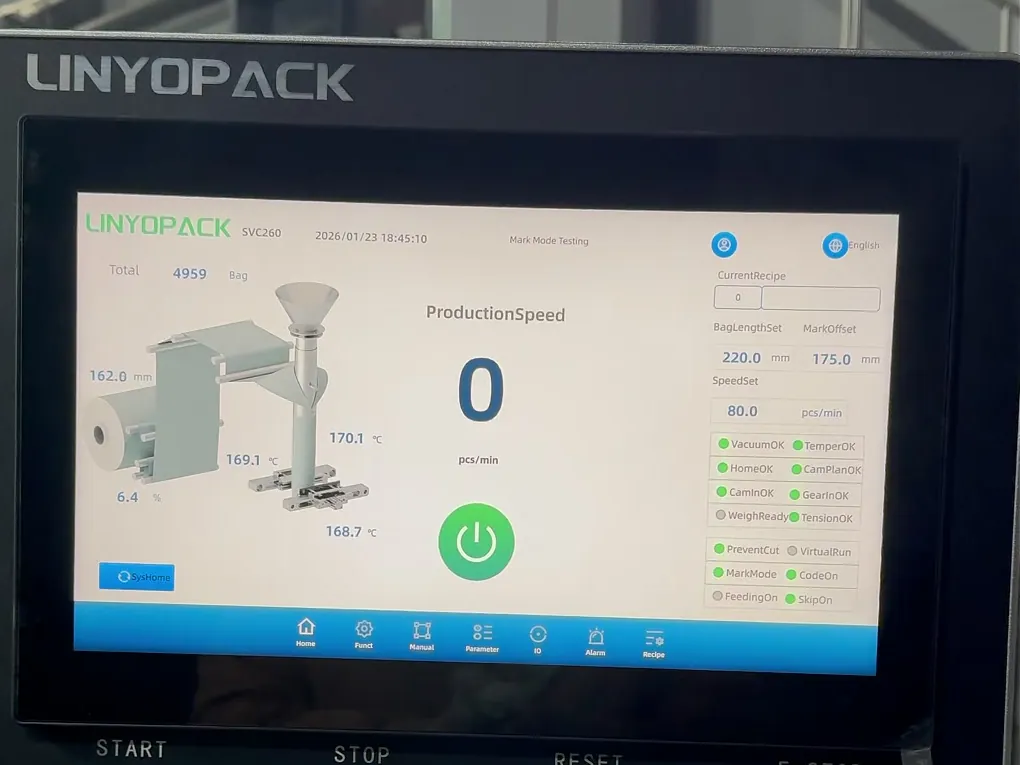

Touchscreen HMI
Setup, alarms and operation control.
Technical Specifications
Reference data. The final setup follows your product and bag.
Download PDFOutline Drawing (CAD)Model
SVC260
Motion type
Continuous motion
Max. bag width
260 mm
Max. bag length
400 mm
Max. speed
160 bags/min*
Film thickness
0.04–0.10 mm
Film types
Laminates · Foil · Paper-based
Rated power
11.4 kW
Power supply
380 V, 50 Hz, 3-phase 4-wireOther voltages on request
Dimensions (L × W × H)
2330 × 1590 × 1900 mm
Product-contact parts
SUS304 stainless steel
*Actual speed depends on product, fill weight, bag size and film.
Bag Formats
Pillow Bag
Side Gusset BagAvailable formats depend on the forming set and machine configuration.
Options
- Laser coder
- Thermal-transfer coder (TTO)
- Gusset assembly
- Mono-material film (custom build)
Part of a Complete Line
Weighers, inspection and case packing are matched to your product and output.
- 01
Product Handling
Feeding and elevation
- 02
Weighing / Dosing
Multihead weigher or other dosing
- 03
SVC260
Forming, filling and sealing
- 04
Inspection
Checkweighing and contaminant inspection
- 05
Secondary Packaging
Case packing and palletizing
Test It With Your Product
160 bags/min is the top speed. The speed you get depends on your product, fill weight, bag size and film, so we test them before you order.
How the packaging test worksWhat to send us
- Product name and condition
- Target fill weight
- Bag type and size
- Film structure, or a film sample
- Required output
- Weigher, coder and inspection needs
We record the result and use it as the output target at FAT.
Warranty
12 months on the machine and 3 years on core components.
What can the SVC260 pack?
Frozen foods and IQF products, snacks and confectionery, nuts and grains, and dry pet food. We confirm each product in a packaging test.
How fast is it?
Up to 160 bags/min. Actual speed depends on the product, fill weight, bag size and film. We confirm it with your product in testing and again at FAT.
What bag sizes can it make?
Bags up to 260 mm wide and 400 mm long. Different bag sizes use different forming sets.
Which bag formats are available?
Pillow bags are standard. Side gusset bags need the optional gusset assembly. Available formats depend on the forming set and machine configuration.
Which films can it run?
Laminates, foil and paper-based films from 0.04 to 0.10 mm thick. Mono-material film is available as a custom build. Send us your film structure and we will confirm it.
Can it work with a weigher and inspection equipment?
Yes. We match the weigher, checkweigher, inspection and downstream equipment to your product and line.
What power supply does it need?
380 V, 50 Hz, 3-phase 4-wire, with 11.4 kW rated power. Other voltages are available on request.
