Many products, one line
Millet, beans, quinoa and corn grits differ in size, weight and flow, and one line often packs several of them.
What we do · Settings and changeover are planned for each product you run.
Grains and Cereals Packaging
Choose the package first, then match conveying, weighing and output to each grain you pack. Our Wide-Spout pouch fillers, SVC260, VP and VGT baggers and both pendulum bucket conveyors are used for grains and cereals.
Packages: 1–5 kg spouted pouches, pillow and gusset bags or quad-seal bags
Grains and Cereals Packaging Challenges
Six points that decide whether a grain line runs well.
02
Small seeds and leaks

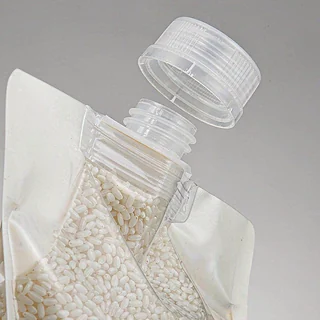

Small grains and seeds such as millet and sesame find every gap and leak at weak seals or spout threads.
What we do · Seal and spout tightness are checked with your smallest product.
03
Dust and fines
Corn grits, cracked grain and flakes carry dust. It builds up in buckets and hoppers and can reach the seal.
What we do · Fines are checked on the conveyor, the filler and the bagger with your product.
04
Volume against weight
Beans are heavy and flakes are light, so the same conveyor m³/h gives very different kg/h.
What we do · We convert the conveyor capacity to kg/h with the bulk density of each product.
05
Carryover between products

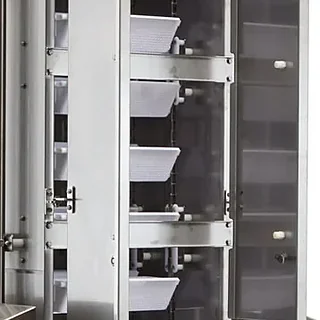

Grain left in buckets, hoppers or chutes mixes into the next product at changeover.
What we do · Cleaning and changeover access are planned with the conveyor and filler layout.
06
Broken kernels
Long drops and hard transfers crack kernels and split beans.
What we do · Drop heights and transfer points are set for your products and confirmed in the test.

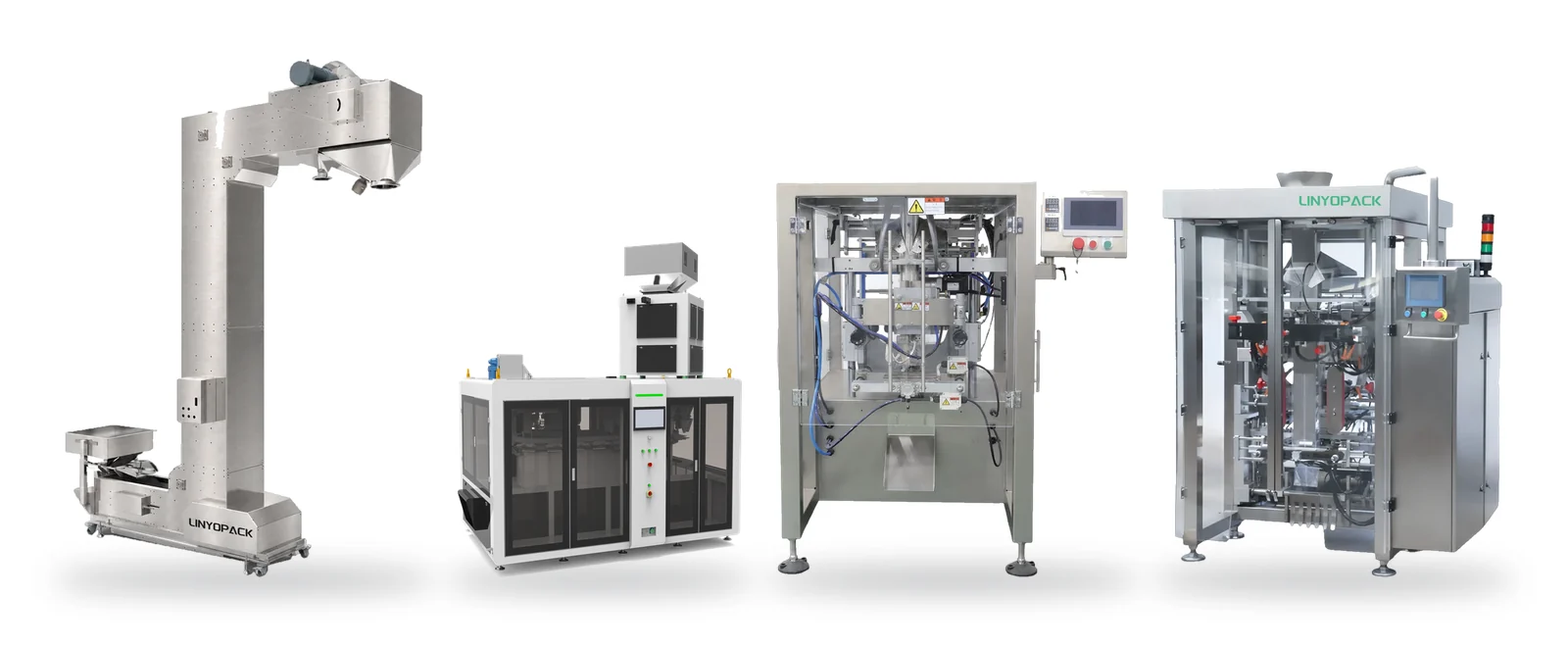

Recommended Packaging Route
The same conveying feeds whichever packaging machine your package needs.
- 01
Pendulum Bucket Conveyor
Hygienic or Standard model lifts the grain to the filler or weigher
- 02
Weighing
Built into the Wide-Spout filler; a multihead weigher for the baggers
- 03
Packaging Machine
Wide-Spout, SVC260, VP or VGT, chosen by the package
- 04
Inspection
Checkweighing and contaminant checks
- 05
Case Packing and Palletizing
Packs into cases, cases onto pallets
Wide-Spout fillers weigh, fill and cap in one machine. The SVC260, VP and VGT take their dose from a multihead weigher.
LINYOPACK machines
Modules Matched to the Product
Start from the package: each packaging machine below is labelled with the pouches or bags it makes. Handling, weighing, inspection and end-of-line modules complete the line.
Packaging machines
Wide-Spout Pouch Filling and Capping
Listed for millet, mixed grains, beans, corn grits and quinoa. 33 mm angled spout. Three models: 450–700, 1000–1200 and 1200–1400 pouches/hour.*
SVC260 Continuous-Motion VFFS
Continuous motion for higher outputs. Bags up to 260 mm wide and 400 mm long, up to 160 bags/min.*
VP Series Compact VFFS
Compact baggers for lower outputs. 20–90 bags/min,* film up to 520 mm wide.
VGT Series Quad-Seal VFFS
Front panel up to 300 mm wide, up to 80 bags/min.*
*Machine references. Actual output depends on product, fill weight, package and film.
Around the packaging machine
Pendulum Bucket Conveyors
Hygienic and Standard models, both listed for grains and cereals, rice, seeds and pulses. 10–20 m³/h and up to 25 m lift, in Z-type and C-type layouts. We check the capacity in kg/h with your bulk density.
Multihead Weighing
For the SVC260, VP and VGT. Configured around the kernel size, the bulk density, the target weight and the dose rate the bagger needs.
Inspection
Checkweighing, metal detection, combined units, or X-ray where the application calls for it. The method is chosen once the product and package are known.
Case Packing and Palletizing
Robotic case packing and palletizing, integrated around the finished pouch or bag, the case pattern, the case rate and the pallet pattern.
Define Sustainable Good Output
A grain line runs at the pace of its slowest stage. The conveyor is rated in m³/h, so we convert it to kg/h with the bulk density of each product and compare it with what the packing line needs.
Conveyor supplykg/h = m³/h × Bulk densityLine demandkg/h = Good packs per hour × Fill weight
Supply must stay above demand for every product on the line. We set the final line target from product tests and agreed FAT conditions.
Request a Packaging Test- 01
Product handling
Enough kg/h at each bulk density
- 02
Weighing or filling
Enough sustainable doses per minute
- 03
Bagging or capping
Enough good packs per minute
- 04
Inspection
Enough accepted packs per minute
- 05
Case packing
Enough cases per minute at the packs per case you need
- 06
Palletizing
Keeps up with the case rate
Test With Your Grains
Send a sample or the product details. We run them before the final configuration is fixed.
How the packaging test worksWhat to send
Samples or specifications of each product
Bulk density of each product
Target fill weights
Pouch or bag samples, with the cap for spouted pouches
Required good output
Products and changeovers per shift
Plant layout
Inspection requirement
Packs per case
What the test checks
Conveyor throughput in kg/h
Broken kernels and fines
Weight result for each product
Pouch opening, filling and capping (Wide-Spout)
Bag forming and seal quality (SVC260, VP, VGT)
Changeover between products
Sustainable output
Reject and stop causes
Downstream pouch and bag handling
Request a Packaging Test

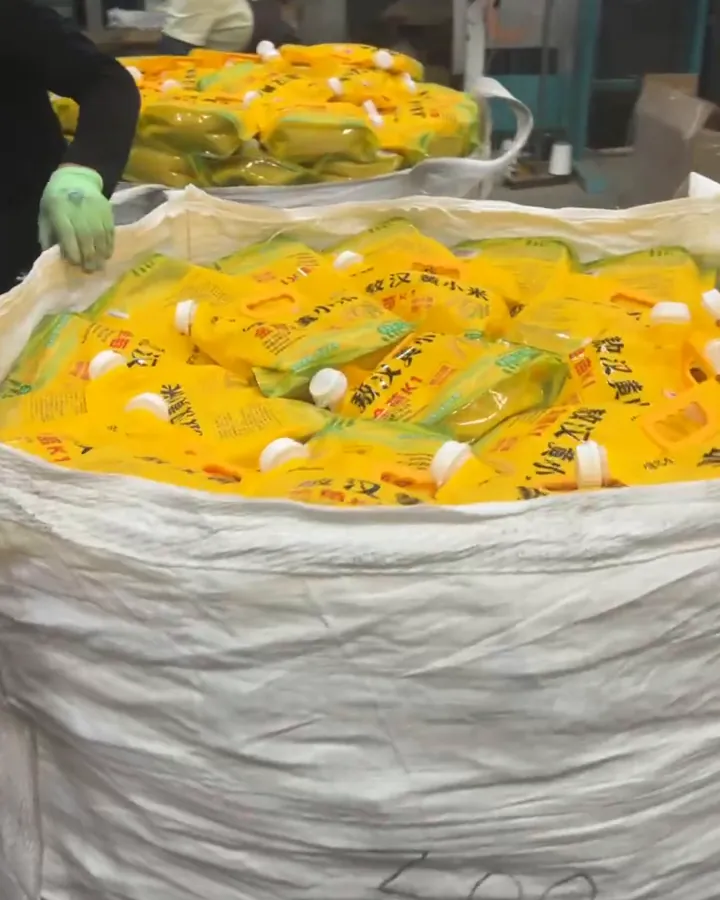

Photo: filled millet pouches from a Wide-Spout test run.
Related Pages
The machines, industry, package format and full system behind this application.
Which LINYOPACK machines are used for grains and cereals?
The Wide-Spout pouch fillers, the SVC260, VP and VGT baggers and both pendulum bucket conveyors.
Which machine is best for grains and cereals?
There is no single best machine. The product, target weight, package and output decide: 1–5 kg spouted pouches go to the Wide-Spout fillers, pillow and gusset bags to the SVC260 or VP, and quad-seal bags to the VGT.
Which grain products are listed for the Wide-Spout fillers?
Millet, mixed grains, beans, corn grits, multigrain brown rice, tricolor quinoa, rice and sesame.
Can one line pack several grains?
Many lines pack more than one product. We plan the settings, changeover and cleaning for each product and check them in the test.
Can the pendulum bucket conveyors handle grains?
Yes. Both models list grains and cereals, rice, seeds and pulses. They are built for free-flowing granular products, not for liquids or slurries.
How do I convert conveyor m³/h to kg/h?
Multiply the conveyor m³/h by the bulk density of the product, then compare it with the line demand: good packs per hour × fill weight.
Can the bag line run 160 bags/min with grains?
160 bags/min is the SVC260's machine maximum. The output of a grain line is set from the actual product, weighing, bag and line conditions.
Can inspection, case packing and palletizing be added?
Yes. Checkweighing, metal detection, robotic case packing and palletizing can be integrated around the pouch or bag, the case and the pallet.
