VP SeriesCompact VFFS Machines
Compact baggers with four dosing options, for frozen foods, snacks, nuts, grains, pet food and powders.
20–90bags/min*
speed range520mm
max. film width400mm
max. bag length4
dosing options
*Output depends on product, fill weight, bag size and film.
Applications
Frozen foods, snacks, nuts, grains, dry pet food and powders in pillow or chain bags.
Frozen Foods / IQF
Shrimp, nuggets, meatballs and vegetables. We check product condition, weight and film in a test run.
Snacks & Confectionery
Chips, puffs and candy. Fragility and bag size decide the weigher and forming set.
Nuts & Grains
Nuts, cereals and grains. Target weight and bag format decide the weigher setup.
Dry Pet Food
Kibble and treats. Piece size, density and dust decide the weigher and film.
Powders
Flour, milk powder and other powders, dosed by the auger filler. We test each powder first.
VP-YT covers the same applications except powders.
Choose Your Dosing System
The VP bagger works with all four. Pick the one that suits your product.

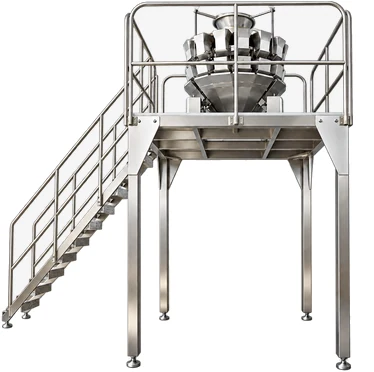

Multihead Weigher
Mounted on a platform above the bagger, for products that suit combination weighing.

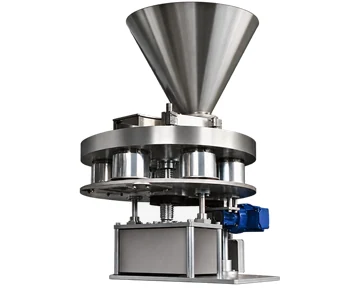

Volumetric Cup Filler
For products where dosing by volume fits the application.

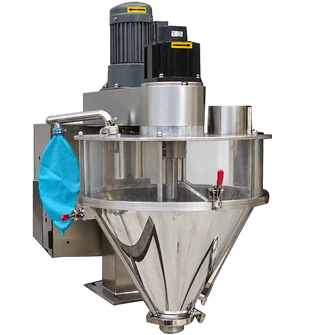

Auger Filler
For powders. We test each powder before you order.

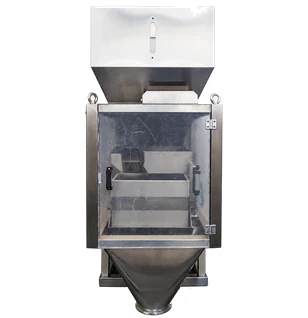

Linear Weigher
For products suited to linear weighing.
VP or VP-YT?
Use a separate filler on the VP, or choose VP-YT with the multihead weigher built on.
- 01

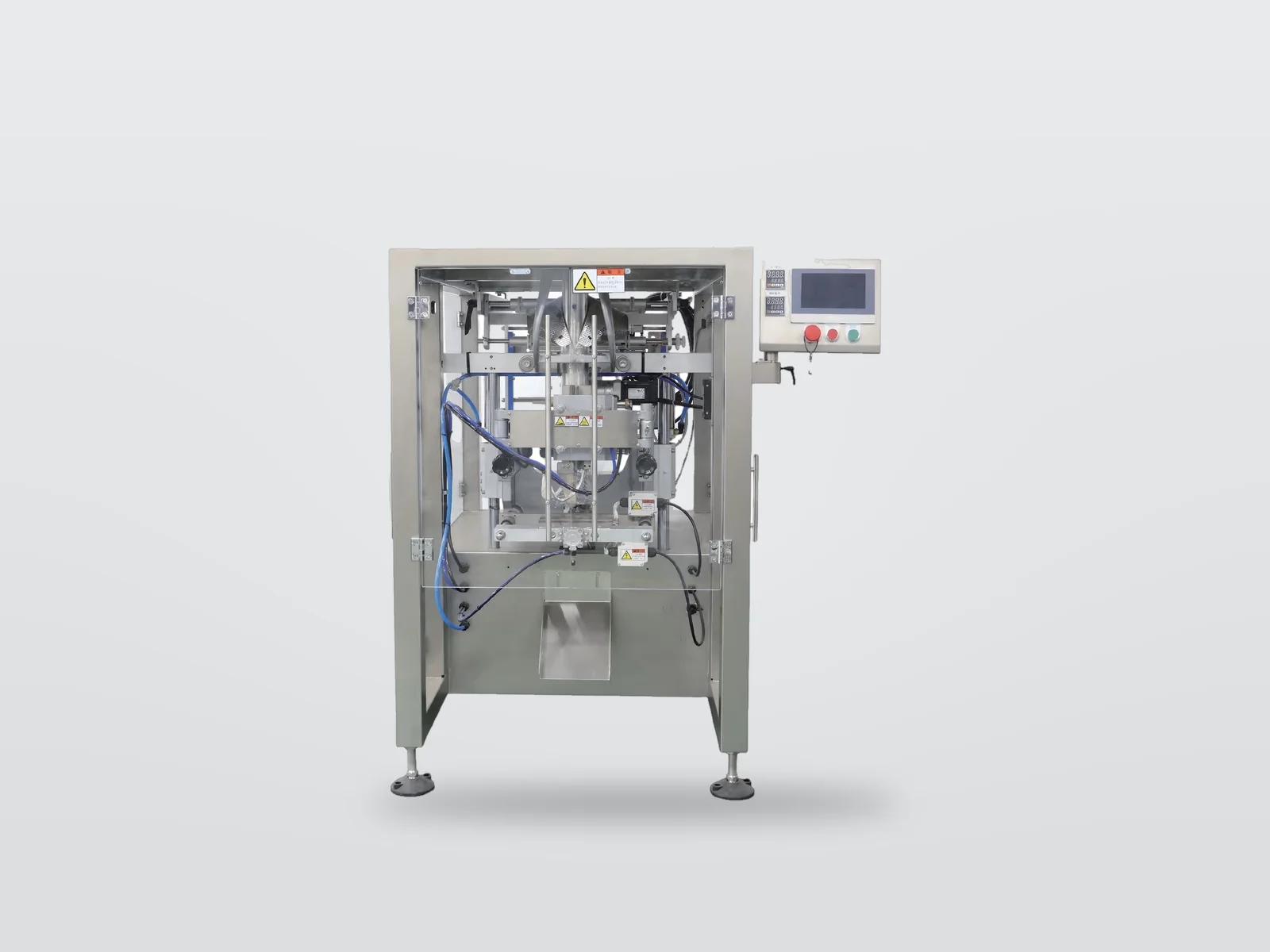

VP Series
VP320, VP420 and VP520 work with any of the four dosing systems, chosen for your product.
- 02

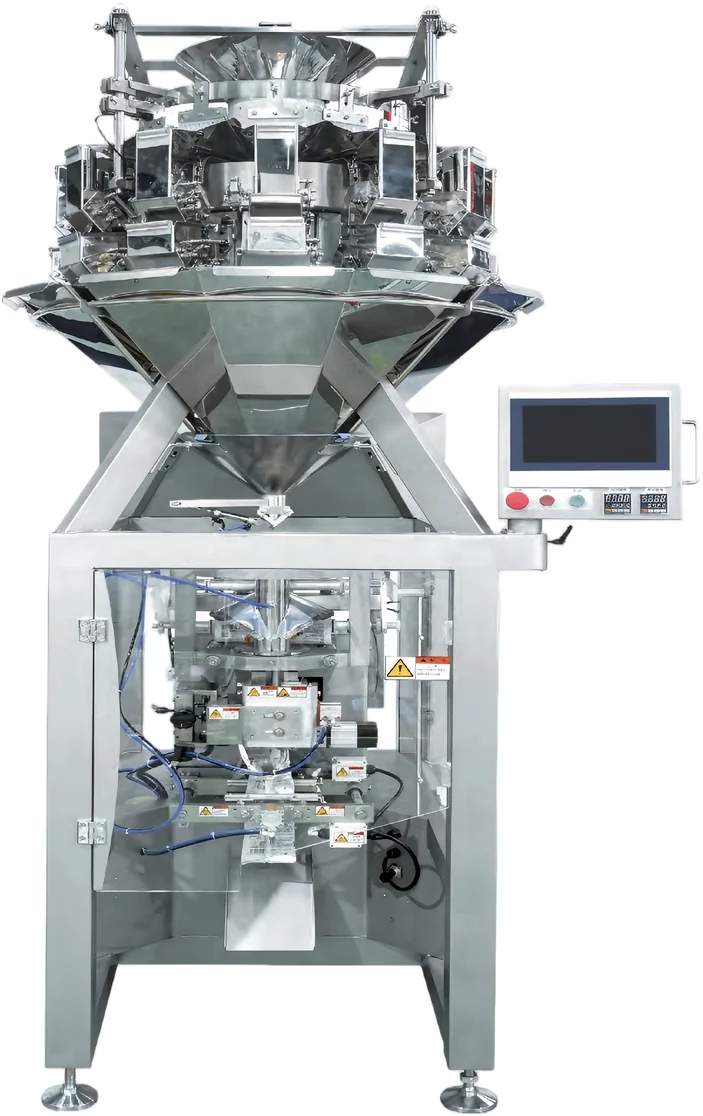

VP-YT
VP320-YT and VP420-YT combine a multihead weigher and bagger in one compact unit.
- 03
Weighing Range
VP-YT weighs from 5 g to 1,000 g, depending on the model.
- 04
Bag Types
Both make pillow bags and chain bags.
VP Series
VP320 · VP420 · VP520
Bagger with a separate dosing system.
VP-YT
VP320-YT · VP420-YT
Weigh, fill and seal in one unit.
VP Series
Swipe the table to see all models.
| Model | VP320 | VP420 | VP520 |
|---|---|---|---|
| Speed* | 20–90 bags/min | 20–90 bags/min | 20–90 bags/min |
| Film width | 90–320 mm | 150–420 mm | 200–520 mm |
| Bag length | 50–190 mm | 50–300 mm | 80–400 mm |
| Bag width | 35–150 mm | 90–200 mm | 100–250 mm |
| Total power | 3.6 kW | 3.9 kW | 4.2 kW |
| Net weight | 195 kg | 220 kg | 285 kg |
| L × W × H | 1460 × 1170 × 1120 mm | 1500 × 1270 × 1120 mm | 1580 × 1380 × 1320 mm |
| Power supply | 220 V, 50 Hz | 220 V, 50 Hz | 220 V, 50 Hz |
VP-YT
Swipe the table to see all models.
| Model | VP320-YT | VP420-YT |
|---|---|---|
| Speed* | 20–80 bags/min | 20–80 bags/min |
| Weigher | 10 or 12 heads, 0.8 L hoppers | 14 heads, 0.8 L hoppers |
| Weighing range | 5–300 g | 10–1,000 g |
| Bag length | 50–190 mm | 50–300 mm |
| Bag width | 35–150 mm | 50–200 mm |
| Total power | 5.4 kW | 6.5 kW |
| Net weight | 210 kg | 330 kg |
| L × W × H | 1670 × 1210 × 2630 mm | 1650 × 1380 × 2710 mm |
| Power supply | 220 V, 50 Hz | 220 V, 50 Hz |
*Output depends on product, fill weight, bag size and film. System space depends on the selected dosing equipment. VP-YT configuration is application-dependent.
Bag Types

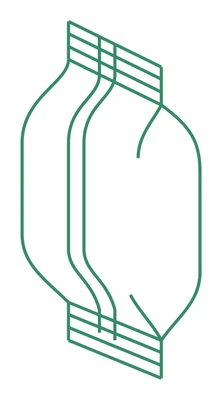

Pillow BagAll models

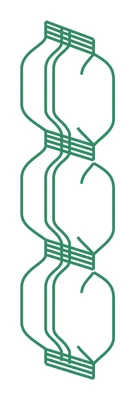

Chain BagsAll modelsPart of a Complete Line
With VP-YT, the weigher and bagger come as one unit.
- 01
Product Feeding
Feeding and elevation
- 02
Dosing / Weighing
Multihead, cup, auger or linear
- 03
VP Series
Forming, filling and sealing
- 04
Inspection
Checkweighing and contaminant inspection
- 05
Secondary Packaging
Case packing and palletizing
Test It With Your Product
20–90 bags/min is the machine range. The speed you get depends on your product, fill weight, bag size and film, so we test them before you order.
How the packaging test worksWhat to send us
- Product name and condition
- Target fill weight
- Bag size
- Film structure, or a film sample
- Required output
- Dosing method and available floor space
We record the result and use it as the output target at FAT.
Warranty
12 months on the machine and 3 years on core components.
What can the VP Series pack?
Frozen foods and IQF products, snacks and confectionery, nuts and grains, dry pet food and, with the auger filler, powders. VP-YT covers the same products except powders. We confirm each product in a packaging test.
What is the difference between VP320, VP420 and VP520?
Bag size. VP320 makes bags up to 150 mm wide and 190 mm long, VP420 up to 200 × 300 mm and VP520 up to 250 × 400 mm. Start from the bag you need.
Which dosing systems can it use?
A multihead weigher on a platform, a volumetric cup filler, an auger filler for powders or a linear weigher.
What is VP-YT?
A VP bagger with a multihead weigher built on, so weighing and bagging take one compact unit. VP320-YT has 10 or 12 heads and weighs 5–300 g. VP420-YT has 14 heads and weighs 10–1,000 g.
Which bag types can it make?
Pillow bags and chain bags.
How fast is it?
VP models run at 20–90 bags/min and VP-YT models at 20–80 bags/min. Actual output depends on the product, fill weight, bag size and film.
How do I choose between VP and VP-YT?
Send us your product, fill weight, bag size, target output and available floor space. We recommend the model and dosing setup from those.
