Pendulum Bucket Conveyor

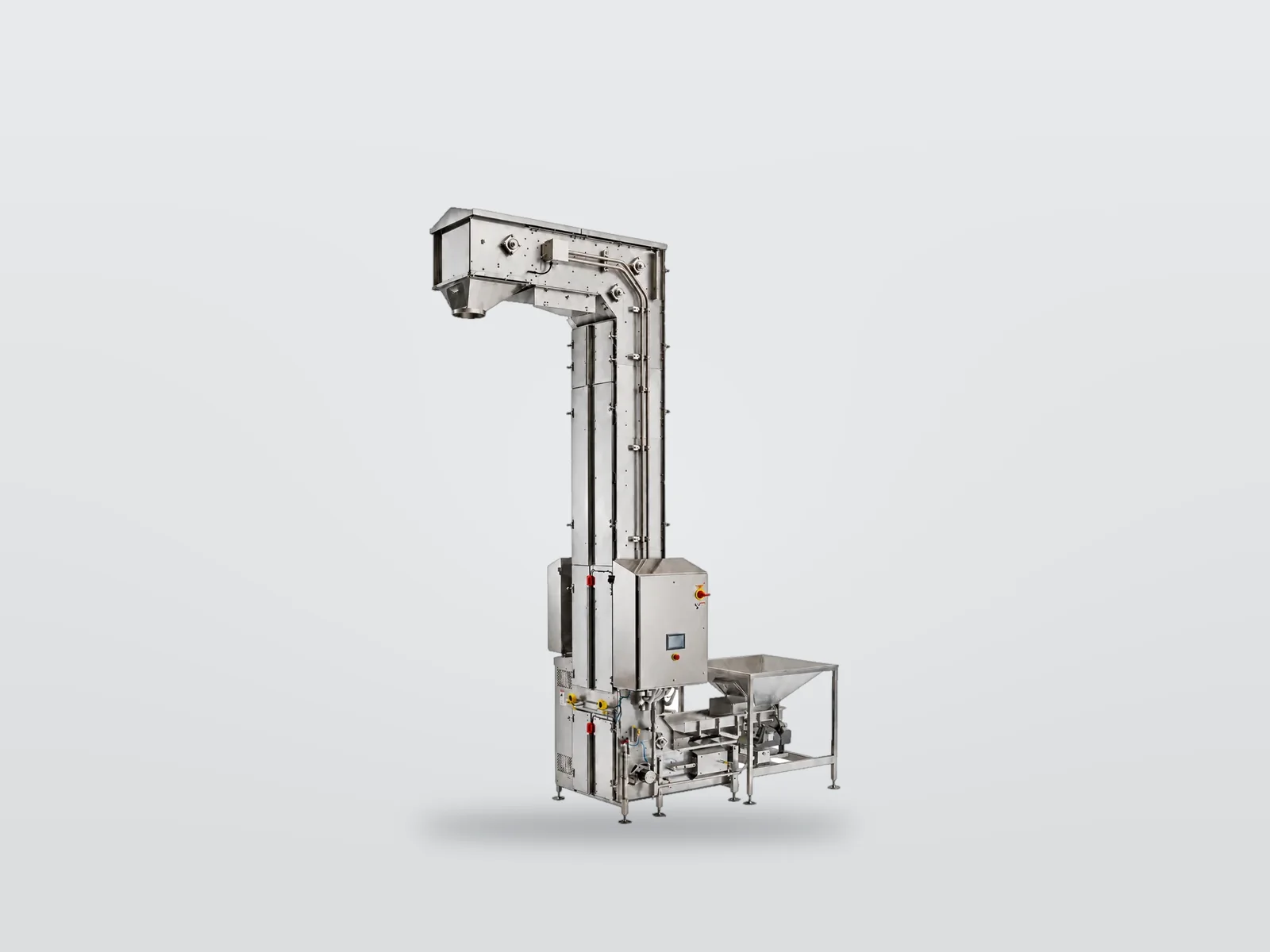

Hygienic PBC
A hygienic Z-type bucket elevator, built with ABB electrics and an SEW geared motor. Buckets lift out and service doors open without tools, and the chain runs without lubrication.
View Hygienic PBC
Bucket Conveyors for Product Handling & Elevation
Pendulum bucket conveyors, also called Z-type bucket elevators, move product along the floor and lift it to the weigher in one bucket path. Pick a version below, or send us your layout and we will size the conveyor.

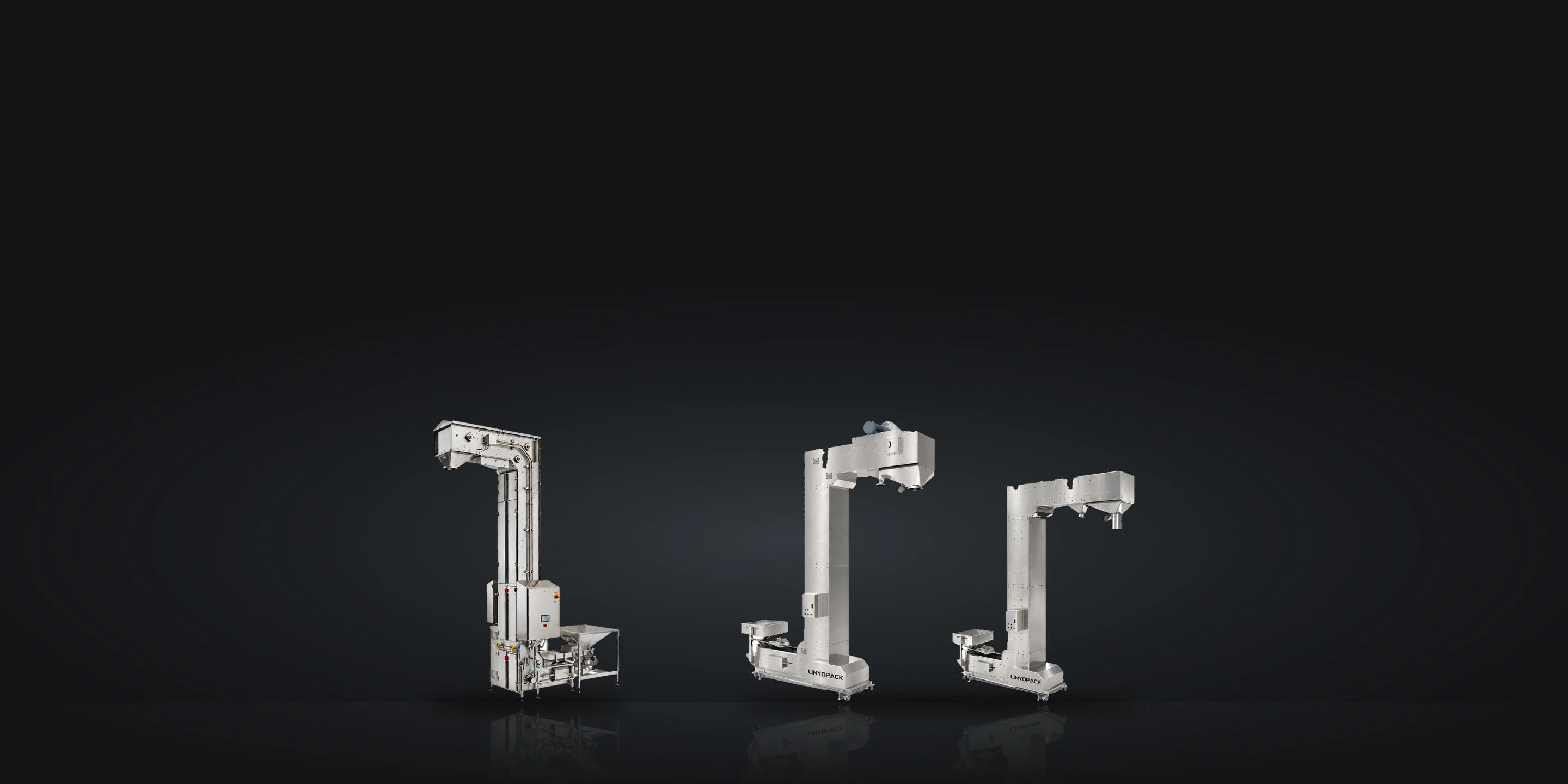

From left: Hygienic PBC, two Standard PBCs.
Choose a Conveyor
Same bucket path, different electrical and drive components.
Pendulum Bucket Conveyor

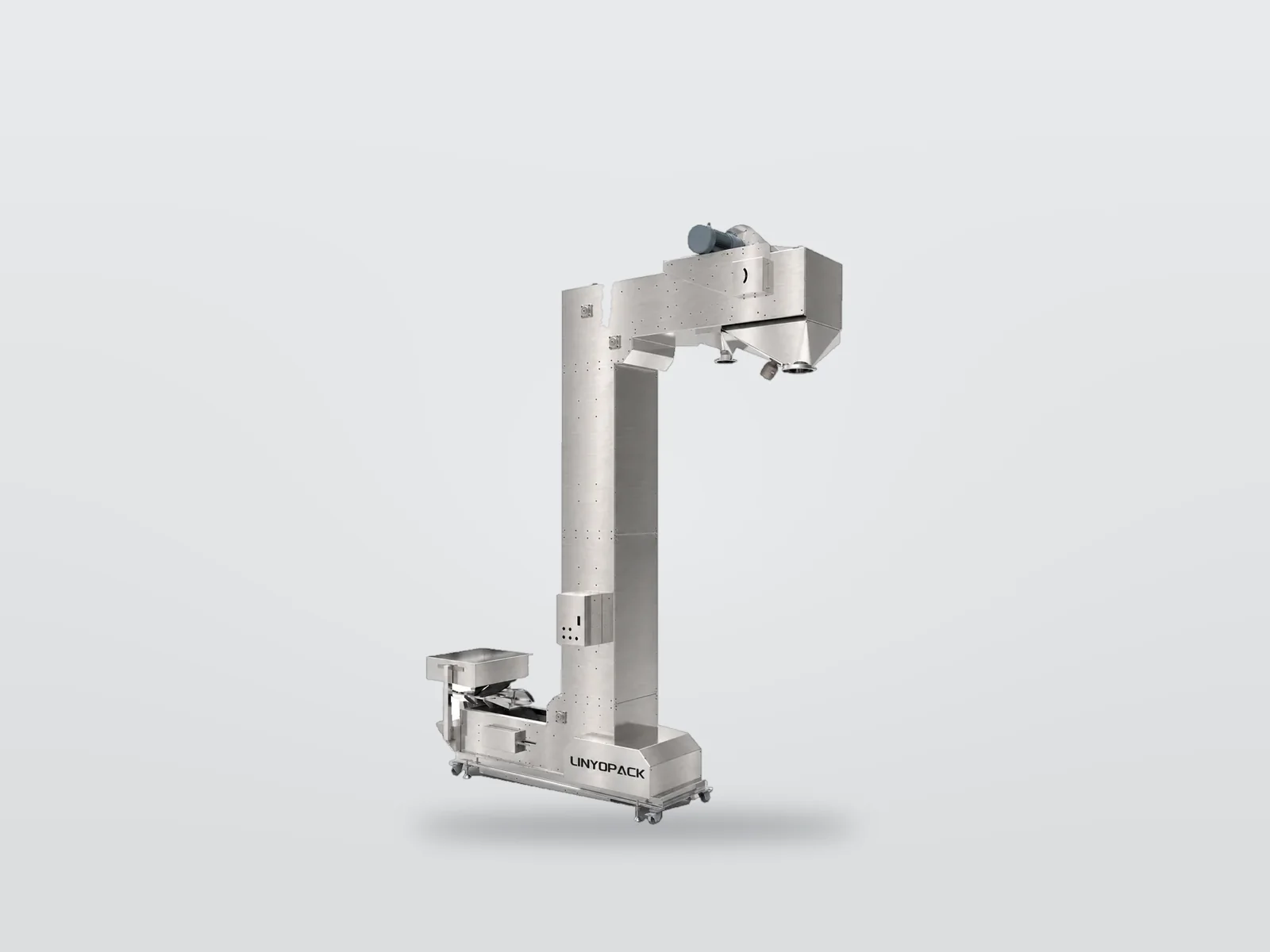

Standard PBC
A Z-type bucket elevator with the same bucket path and cleaning features, built with Schneider switches, an Inovance VFD and a GUOMAO geared motor.
View Standard PBC

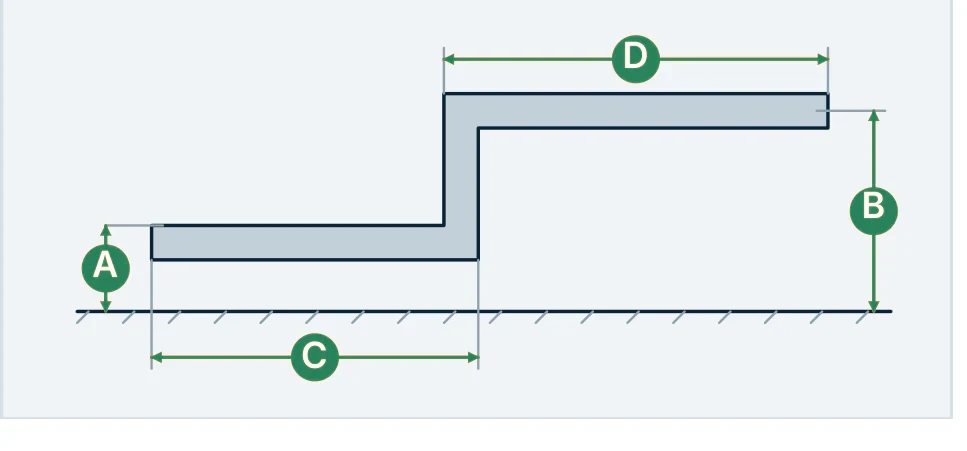

Send Us Four Numbers
We send back a layout and a quote.
- AInfeed height above floor
- BDischarge height above floor
- CHorizontal run at the infeed
- DHorizontal run at the discharge
Z-type and C-type layouts. Infeed and discharge are built to your drawing.
Send Your LayoutFrom Your Product to a Running Machine
01
Sized to Your Product
Throughput is a volume, so we size the conveyor from your product's bulk density and the packing rate of the machine it feeds.
02
Built to Your Layout
Z-type or C-type layout, with the infeed and discharge built to your drawing.
Send your layout03
Part of a Complete Line
The conveyor feeds your weigher and packaging machine, and we can plan them together.
Packaging MachineryIs a pendulum bucket conveyor the same as a Z-type bucket elevator?
Yes. Pendulum bucket conveyors are often called Z-type bucket elevators, after the Z-shaped bucket path of the Z-type layout. Ours are also built in a C-type layout.
What products can it handle?
Grains and cereals, rice, seeds and pulses, nuts and dried fruit, salt and sugar, snacks and confectionery, feed and pet food, coffee and cocoa, and plastic granules. It is not suitable for liquids or slurries.
What is the difference between the Hygienic and Standard versions?
Both work the same way. The Hygienic version uses ABB electrics and an SEW geared motor. The Standard version uses Schneider switches, an Inovance VFD and a GUOMAO geared motor. Choose by your product, cleaning needs and line standards.
What is the throughput?
10–20 m³/h, depending on the model. This is a volume. Your kg/h is the m³/h multiplied by your product's bulk density.
Which layouts are available?
Z-type and C-type, with lifts up to 25 m. Infeed and discharge are built to your drawing.
Does it reduce product breakage?
It is designed to reduce transfers: product is loaded once and discharged once, with no chutes in between. Breakage depends on the product, so we test fragile products first.
How is it delivered?
Shipped in sections, ready to lift in, with English manuals. Lead time is 30 days ex-works.
LINYOPACK in Numbers
Why LINYOPACK10+ years
in packaging machinery
1,000+
packaging machines delivered
30+
patents
ISO 9001
certified · CE marking on every machine model
Start With Your Product
Send your product, required output and four layout dimensions. We will send back a layout and a quote.
- 01Product
- 02Output
- 03Heights A, B
- 04Runs C, D
We reply within 1 working day.
