Wide-SpoutPouch Weighing, Filling & Capping Machines
Weigh, fill and cap 1–5 kg of rice, grains, pet food and other dry granular products in 33 mm angled-spout pouches.
1–5kg
weighing range33mm
angled spout1,400pouches/h*
max. output (SPFC-1200R)3
models
*Actual output depends on product, pouch, loading mode and configuration.
Applications
Dry granular and small-piece products, 1–5 kg per pouch.
Also suitable for
- Mixed grains
- Beans
- Tricolor quinoa
- Corn grits
- Sesame
- Coffee beans
- Pet food
- Cat litter
- Hamster sand
Choose by Output
From operator-loaded filling to automatic cap feeding.
Operator-loaded

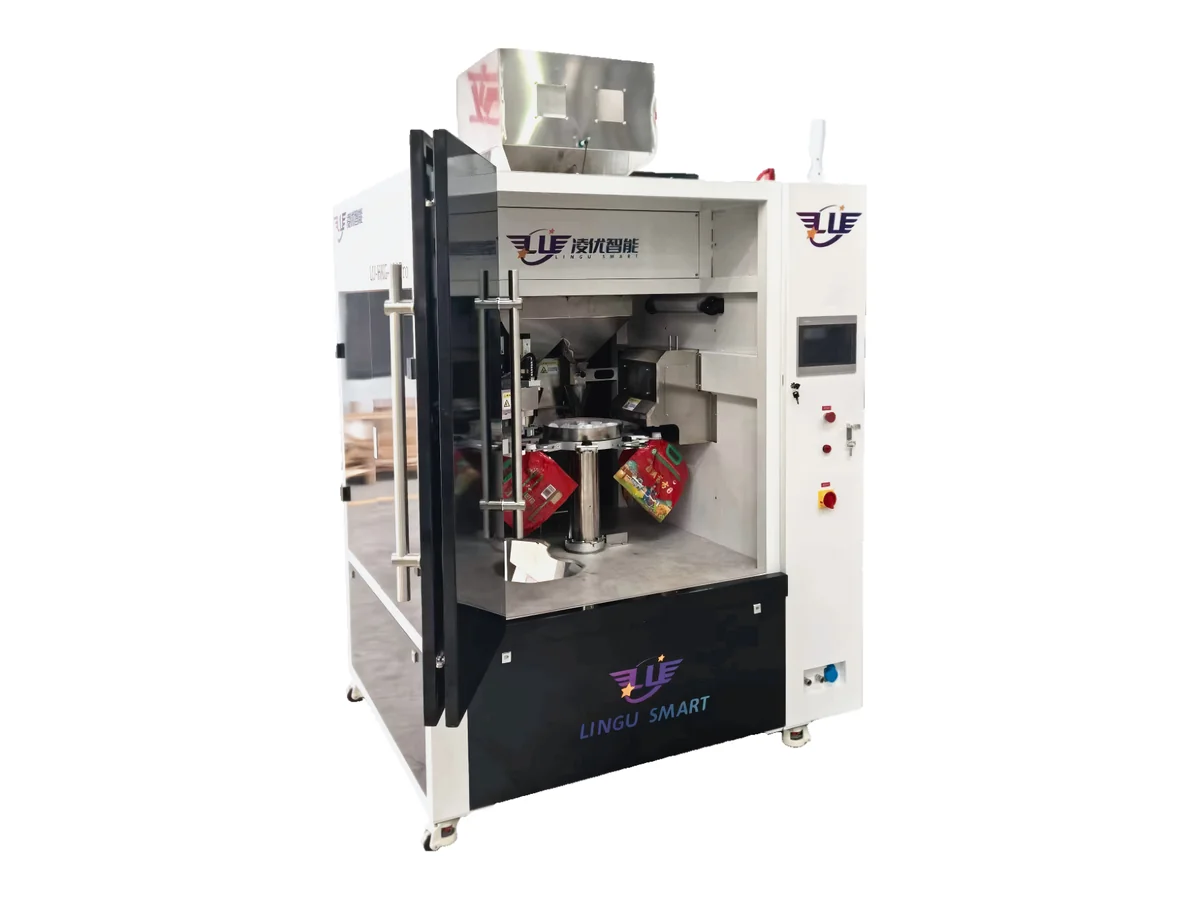

LU-HKG-600PRO
450–700pouches/hour*
- 01
Manual Loading
One operator loads the pouches and caps.
- 02
Dual-Hopper Weighing
Weighs and fills two pouches at once.
- 03
Servo Capping
Cap tightness is adjustable with servo torque control.
- 04
Less Manual Handling
Designed to reduce manual handling on the filling line.
High-speed rotary

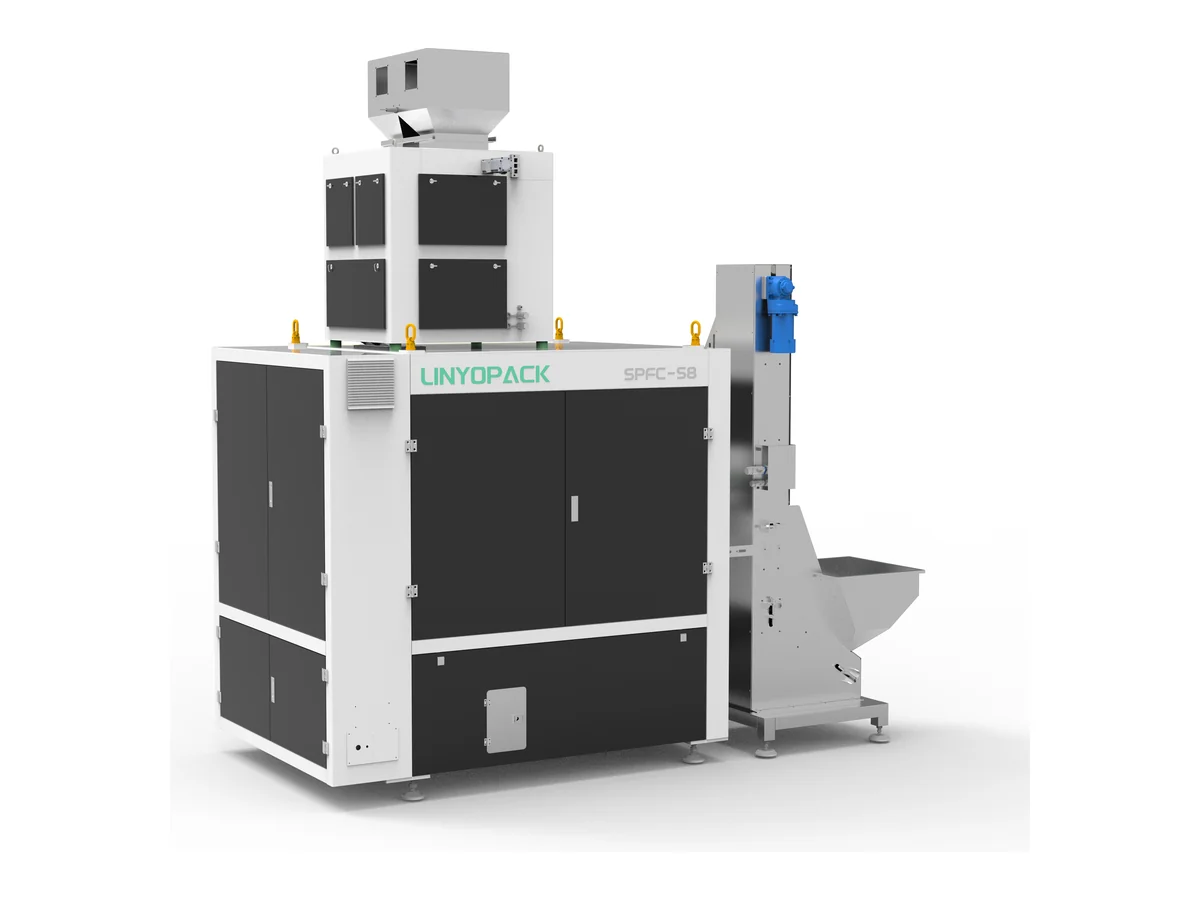

SPFC-S8
1,000–1,200pouches/hour*
- 01
Eight-Station Rotary Table
Handles two pouches per cycle.
- 02
Automatic Cap Feeding
Caps are sorted and fed automatically.
- 03
Synchronized Filling
Two pouches filled together, then capped with servo torque control.
- 04
Compact Footprint
High output in a narrow machine.
Options
- Air evacuation / nitrogen flushing
- Foil induction sealing
- Automatic pouch loading
- Laser coder
Highest output

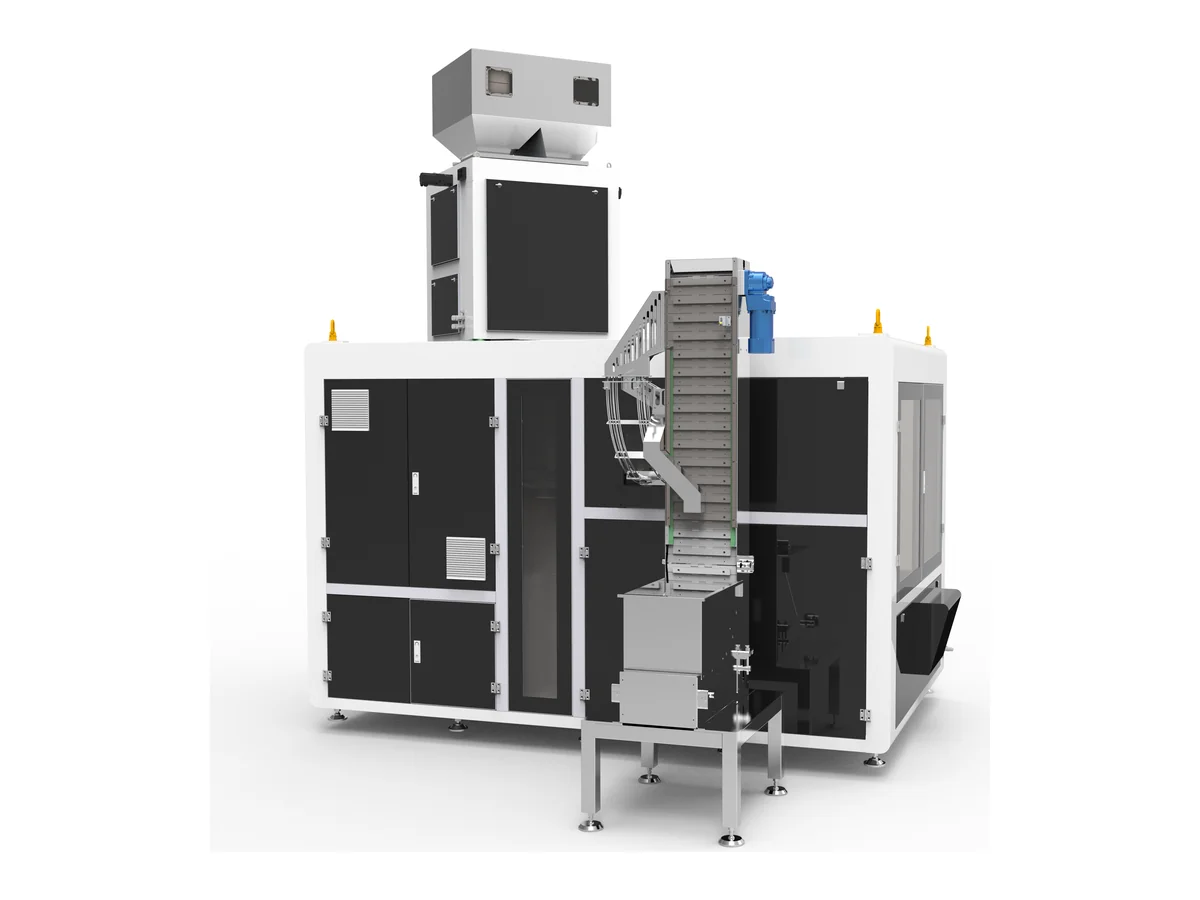

SPFC-1200R
1,200–1,400pouches/hour*
- 01
High-Speed Servo Weighing
Dual hoppers with high-speed servo weighing.
- 02
Circular Transport
Pouches move on a circular track, with automatic cap feeding.
- 03
Synchronized Filling
Two pouches filled together, then capped with servo torque control.
- 04
15-inch Touchscreen
HD touchscreen with real-time operating status.
Options
- Air evacuation / nitrogen flushing
- Foil induction sealing
- Pouch burst detection
- Material discharge detection
- AI visual spout / cap inspection
- Laser coder
All models: 304 stainless steel product-contact parts, PLC control with a touchscreen, self-diagnostics and automatic fault handling. *Actual output depends on product, pouch, loading mode and configuration.
Swipe the table to see all models.
| Model | LU-HKG-600PRO | SPFC-S8 | SPFC-1200R |
|---|---|---|---|
| Pouch | Angled-spout stand-up, 33 mm spout | Angled-spout stand-up, 33 mm spout | Angled-spout stand-up, 33 mm spout |
| Output* | 450–700 pouches/h | 1,000–1,200 pouches/h | 1,200–1,400 pouches/h |
| Weighing range | 1–5 kg | 1–5 kg | 1–5 kg |
| Accuracy / scale division | X(0.5) / 1 g | X(0.5) / 1 g | X(0.5) / 1 g |
| Pouch loading | Manual | Manual or automatic | Manual or automatic |
| Cap feeding | Manual | Automatic | Automatic |
| Power supply | AC 220 V, 50 Hz, 1Ph + N + PE | AC 220 V, 50 Hz, 1Ph + N + PE | AC 380 V, 50 Hz, 3Ph + N + PE |
| Power | 3 kW | 7.22 kW** | 7.02 kW** |
| Air pressure | > 0.6 MPa | > 0.6 MPa | > 0.6 MPa |
| Air consumption | 18 m³/h | 26 m³/h | 26 m³/h |
| Machine weight | 830 kg | 1810 kg | 2650 kg |
| L × W × H | 1700 × 1730 × 2630 mm | 3055 × 1350 × 3140 mm | 3130 × 2930 × 3480 mm |
*Actual output depends on product, pouch, loading mode and configuration. **Including the weighing system. A laser coder adds 1 kW and an induction sealer 2 kW.
Part of a Complete Line
Coding, inspection, case packing and palletizing are planned with the filler.
- 01
Product Feeding
Bucket conveyor to the hoppers
- 02
Wide-Spout Filler
Weighing, filling and capping
- 03
Coding & Inspection
Laser coding and checkweighing
- 04
Case Packing
Case erecting, packing and sealing
- 05
Palletizing
Robotic palletizing
Test It With Your Pouch
Output ranges are machine references. The rate you get depends on your product, fill weight, pouch, loading mode and options, so we test with your pouch before you order.
How the packaging test worksWhat to send us
- Product and its bulk density
- Target fill weight
- Pouch and cap samples
- Required output
- Manual or automatic pouch loading
- Nitrogen flushing or induction sealing needs
We record the result and use it as the output target at FAT.
Warranty
12 months on the machine and 3 years on core components.
What can these machines pack?

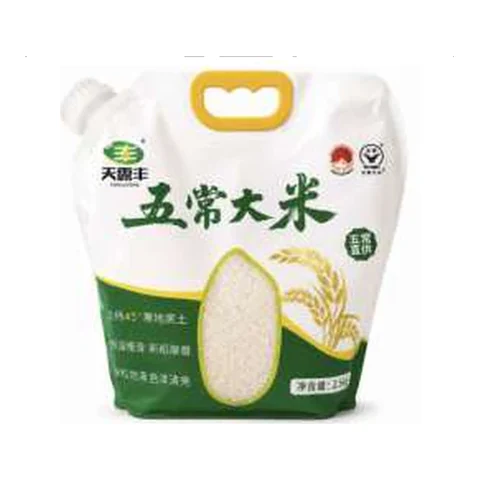

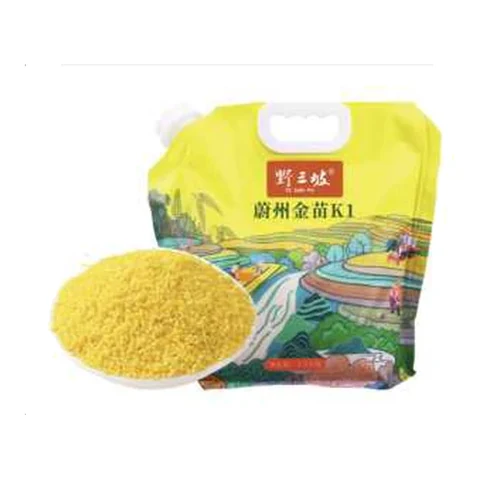

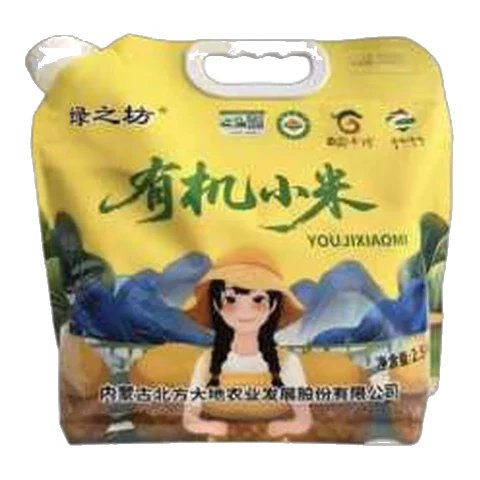

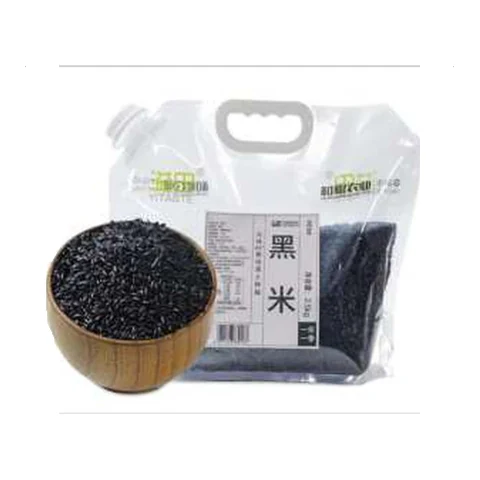

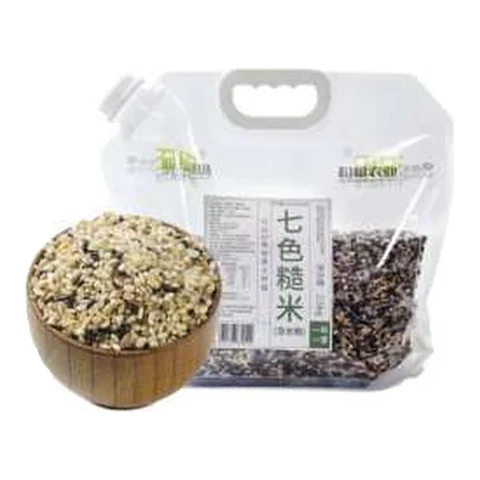

Rice, millet, mixed grains, beans, coffee beans, sesame, corn grits, multigrain brown rice, tricolor quinoa, pet food, cat litter and hamster sand. All are dry granular or small-piece products.
Can they fill liquids, sauces or powders?
No. This machine family is built for dry granular and small-piece products.
Which pouch do they use?

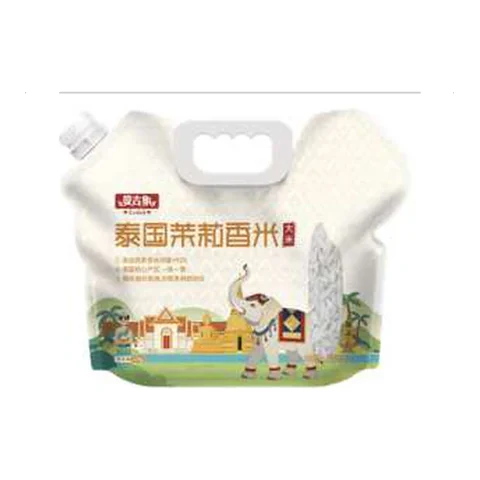

Angled-spout stand-up pouches with a 33 mm spout, filled from 1 to 5 kg.
Which model should I choose?
Start from the output you need. LU-HKG-600PRO runs 450–700 pouches/hour with manual loading. SPFC-S8 runs 1,000–1,200 and SPFC-1200R 1,200–1,400, both with automatic cap feeding.
What does "X(0.5) / 1 g" mean?
It is the accuracy class and scale division of the weighing system. Actual weighing results depend on your product and are confirmed in testing.
Can I add nitrogen flushing or induction sealing?
Yes, on the SPFC-S8 and SPFC-1200R. Both are options chosen for each project.
Can the filler connect to case packing and palletizing?
Yes. Coding, inspection, case packing and palletizing can follow the filler, and are planned with your line.
Tell Us Your Product
Send your product, fill weight, pouch and target output. We will recommend the model and test plan.
- 01Product
- 02Fill weight
- 03Pouch
- 04Output
We reply within 1 working day.
