01

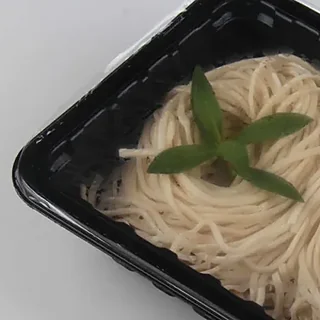

Sauce and oil on the flange
Sauce, oil and crumbs on the tray flange cause weak or leaking seals.
What we do · Every packaging test checks flange cleanliness and seal quality.
Prepared Food Tray Packaging
Build the tray packaging around the meal, the tray, the film and how the pack will be used. Our Hybrid Pro T680 tray sealer lists ready meals and runs seal-only, MAP and VSP packs on one machine.

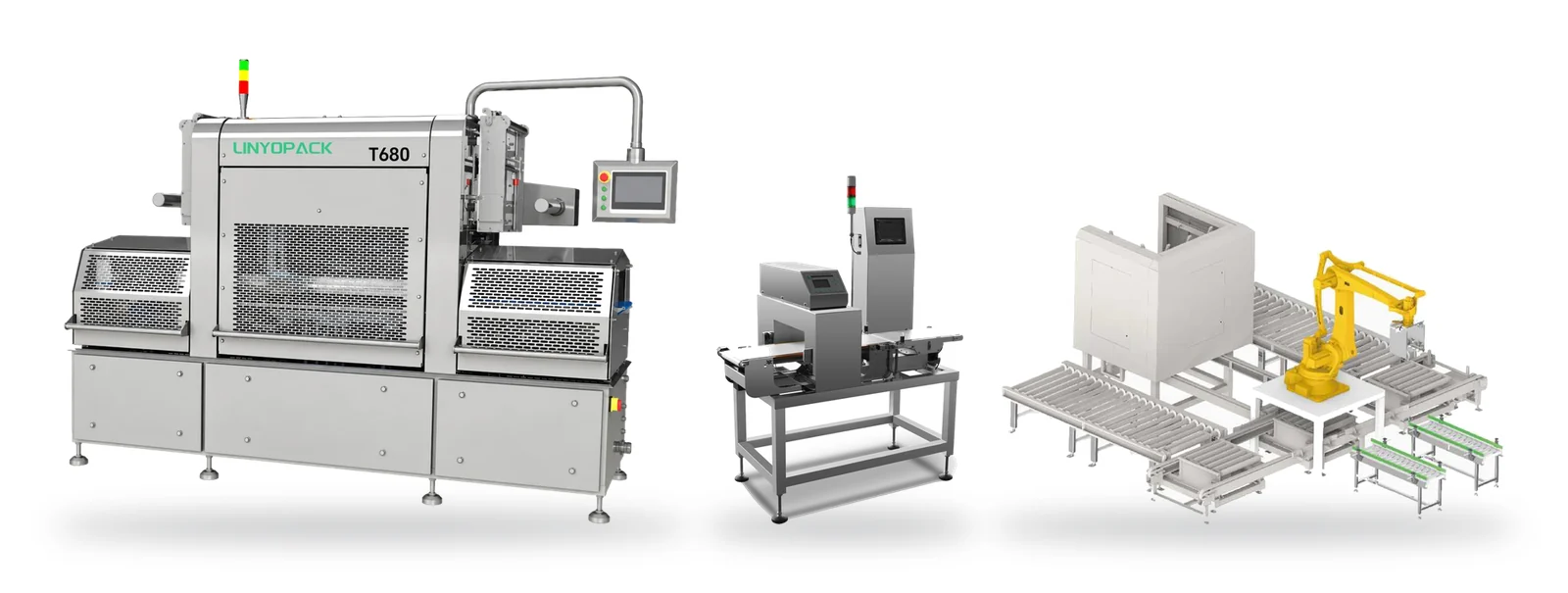

Typical route: tray supply → product loading → T680 tray sealing → inspection and labeling → case packing
Prepared Food Tray Packaging Challenges
Six points that decide whether a prepared food tray line runs well.
02
Overfill and product height
Overfilled trays and tall items push food into the seal area.
What we do · Fill level and product height are checked against your tray.
03
Several components
Meals with solids, sauce and garnish take longer to load, and pieces land on the flange.
What we do · Loading and fill level are checked with your full recipe.
04

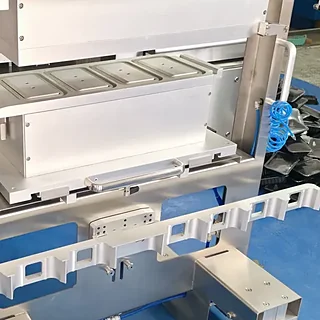

Compartment trays
Each compartment is filled separately, and the film often has to seal along the dividers too.
What we do · Compartment trays are tooled and tested for each layout.
05
Microwave or oven use
Whether a pack can be reheated depends on the tray, the film and the seal, so the sealer alone cannot decide it.
What we do · Tell us the end use. We test the seal on the tray and film chosen for it.
06

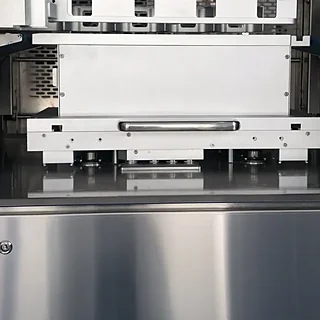

Clean seals set the pace
Filling cleanly takes time, so a clean seal often limits output before the sealer reaches its maximum speed.
What we do · Loading, flange cleanliness and sealing are checked together in the test.
Recommended Packaging Route
Tray supply, loading and sealing are planned together, then matched to the meal.
- 01
Tray Supply
Empty trays to the line
- 02
Product Loading
Components placed or dosed into the tray
- 03
T680 Tray Sealing
Seal-only, MAP or VSP
- 04
Inspection and Labeling
Checks and labels on the sealed tray
- 05
Case Packing and Palletizing
Trays into cases, cases onto pallets
Tray denesting, product dosing and labeling are planned for each project.
Modules Matched to the Product
Each module is chosen for the meal and the tray, then integrated into the line.
Hybrid Pro T680 Tray Sealer
Lists ready meals. Seal-only, MAP and VSP on one machine, on plastic or paper-based trays. Up to 25 (seal-only), 20 (MAP) or 12 (VSP) cycles/min.*
Tray Tooling
Made for your tray and cavity layout. Standard tooling seals 4 trays per cycle, and a quick-change cart swaps tooling in about 15–30 min.
Inspection
Checkweighing, metal detection, combined units, or X-ray where the application calls for it. The method is chosen once the product, tray and film are known.
Case Packing and Palletizing
Robotic case packing and palletizing, integrated around the sealed tray, the case pattern, the case rate and the pallet pattern.
*Machine maximum. Actual output depends on product, tray, film, gas mixture and tooling.
Define Sustainable Good Output
A prepared food tray line runs at the pace of its slowest stage, often loading or a clean seal, so we check every stage instead of quoting the sealer's top speed.
Good trays per minute= Good cycles per minute × Trays per cycle
Trays per cycle come from your tooling, so we do not multiply the 25 cycles/min maximum by four. We set the line target from tests and agreed FAT conditions.
Request a Packaging Test- 01
Tray supply
A steady supply of empty trays
- 02
Loading
Enough filled trays per minute, with a clean flange
- 03
Sealing
A stable seal cycle, with vacuum and gas for MAP
- 04
Inspection
Enough accepted, labeled trays per minute
- 05
Case packing
Enough cases per minute at the trays per case you need
- 06
Palletizing
Keeps up with the case rate
Packaging Mode and Machine Fit
Choose the mode for the meal and its end use. All three run on the T680.
Seal-Only
Lidding film sealed onto the tray without changing the atmosphere.
Up to 25 cycles/min*MAP
Vacuum, then gas filling with an O₂ / CO₂ / N₂ mix. Residual O₂ below 0.5%.
Up to 20 cycles/min*VSP
Vacuum skin packaging, where the meal's shape, the tray and the film suit it.
Up to 12 cycles/min*
*Machine maximum. Actual output depends on product, tray, film, gas mixture and tooling.
Why the T680
Ready meals are one of the T680's listed applications, and one machine covers all three modes on plastic or paper-based trays. Detailed specifications are on the machine page.
View T680
Test With the Real Meal
Send a sample or the product details. We run them before the final configuration is fixed.
How the packaging test worksWhat to send
Meal sample or specification
Components: solids, sauce and garnish
Fill weight and product height
Product temperature at packing
Tray sample or drawing, single or multi-compartment
Lidding film sample or structure
Packaging mode and gas requirement
End use, such as microwave heating or chilled display
Required good output
What the test checks
Tray handling
Loading and fill level
Sauce, oil and crumbs on the flange
Seal quality
Peel, where required
Residual O₂ (MAP)
Finished appearance
Cycle stability
Sustainable output, rejects and stops
Send Your Tray & Film

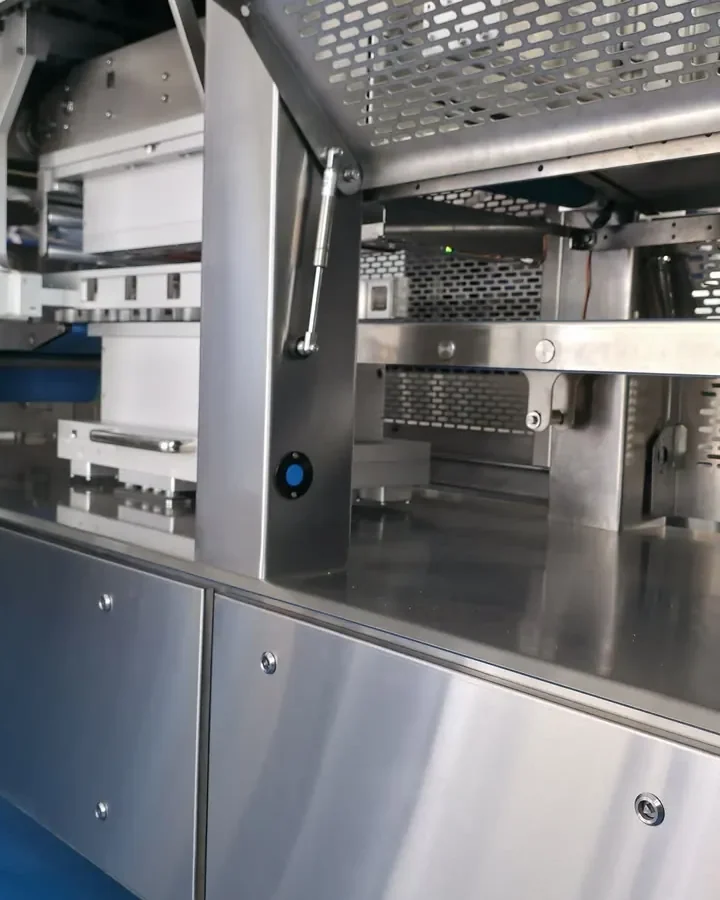

Photo: T680 tray feeding in our workshop.
Related Pages
The machine, industry, tray format and services behind this application.
Is the T680 suitable for ready meals?
Yes. Ready meals are one of the T680's listed applications. The setup is defined from the meal, tray, film and packaging mode.
Which packaging mode should a ready meal use?
It depends on the food, the tray, the film, the atmosphere you need and the end use. No single mode suits every ready meal.
How fast does the T680 run?
Up to 25 cycles/min in seal-only, 20 in MAP and 12 in VSP. These are machine maximums. Actual output depends on the product, tray, film and gas mix.
Does 4 trays per cycle mean a fixed number of trays per minute?
No. Four trays per cycle is the standard tooling. Your tray and compartment layout decide the cavities, and the sustainable output is confirmed in testing.
Can the T680 seal multi-compartment trays?
Compartment trays need tooling and seal checks for each layout, so we test them with your tray before you order.
Can the T680 make microwave-safe or oven-safe packs?
That depends on the tray, film, seal and food process, so it cannot be promised from the sealer alone. It has to be confirmed for your tray and film.
Which gas mix should I use for MAP?
The T680 mixes O₂, CO₂ and N₂ with ±2% accuracy. The right mix depends on your meal and pack, and is set during testing.
Will the T680 give my meals a fixed shelf life?
No. Shelf life depends on the food, the process, the gas mix, the tray, the film and storage, so it has to be tested for your pack.
Start With Your Meal
Send the meal, tray, film, packaging mode, end use and required output. We will use them to define the T680 setup and the test plan.
